The ARCUS INDUSTRIES RTD (Resistance Temperature Detector) is a highly accurate and stable temperature sensor designed to measure temperature in industrial processes. It operates on the principle of resistance change in metals with temperature variation, providing reliable and repeatable output. Suitable for a wide temperature range,
RTDs are ideal for applications in chemical plants, food processing, pharmaceuticals, and power generation. With robust construction and compatibility with transmitters and controllers, ARCUS RTDs ensure precise temperature monitoring and control.
Sensor | PT-100 / PT-1000 |
Temperature Range | -50°C to +250°C |
Accuracy Class | Class A |
Element Configuration | Single or duplex element |
Sheath Material | SS304 / SS316 |
Probe Diameter | 6 mm, 8 mm, 10 mm, etc. |
Insulation Resistance | 100 MΩ |
Connection Type | 2-wire, 3-wire, or 4-wire |
Termination | Terminal Head / Cable End / Plug-in Connector |
Mounting Style | Threaded / Flanged / Compression Fitting |

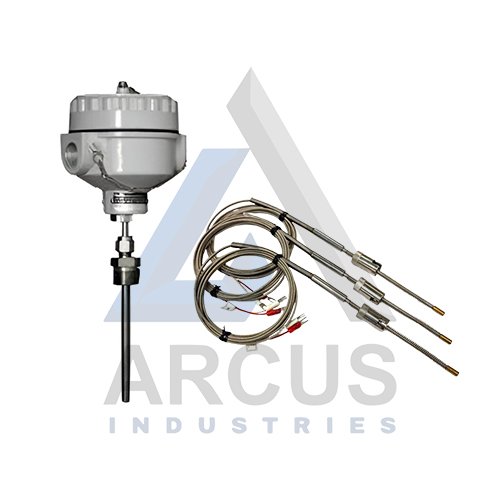

The ARCUS INDUSTRIES Thermocouple is a rugged and versatile temperature sensor designed for rapid and accurate temperature measurement in demanding industrial environments. It functions based on the thermoelectric effect, generating a voltage corresponding to temperature changes.
Suitable for a wide temperature range, it is commonly used in furnaces, boilers, metal processing, and chemical industries. With fast response time, high durability, and compatibility with standard transmitters and controllers, ARCUS Thermocouples ensure efficient and reliable temperature monitoring.
Sensor Type | J, K, T, E, N, R, S, B |
Temperature Range | Type K: -200°C to +1250°C Type J: -40°C to +750°C |
Accuracy | ±0.75% of reading |
Sheath Material | SS304 / SS316 / Ceramic |
Probe Diameter | 6 mm, 8 mm, 10 mm, etc. |
Insulation Resistance | 100 MΩ |
Termination | Terminal Head / Extension Cable / Miniature or Standard Thermocouple Connector |
Mounting | Threaded / Flanged / Compression Fitting |
Lead Wire Type | Compensating or Extension Cable, with Fiberglass, PTFE, or PVC insulation (Depends on temperature and environment) |

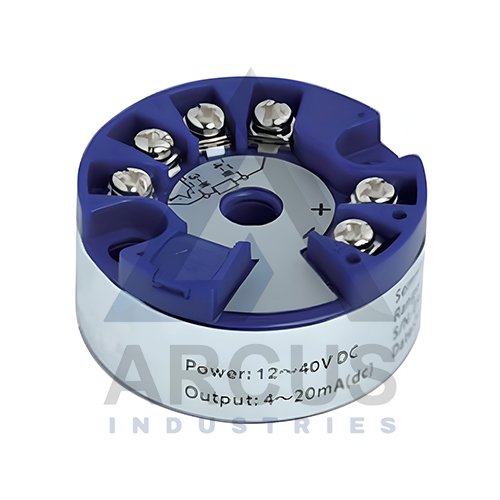

The ARCUS INDUSTRIES Universal Temperature Transmitter is a versatile device designed to convert signals from RTDs, thermocouples, or other temperature sensors into standardized analog or digital outputs. Compatible with a wide range of input types, it ensures seamless integration with PLCs, DCS, and SCADA systems.
Ideal for complex and multi-sensor environments, this transmitter offers high accuracy, signal isolation, and configurable parameters for reliable temperature monitoring and process control across various industries.
Input Types | RTD: Pt100, Pt1000 Thermocouples: Types K, J, T, E, N, R, S, B |
Output Signal | 4–20 mA (2-wire loop-powered) |
Power Supply | 12 to 36 VDC |
Accuracy | RTD input: ±0.1°C or ±0.1% of span Thermocouple input: ±1°C or better |
Atmospheric Temp. Range | -40°C to +85°C |
Mounting Type | Head Mounted |

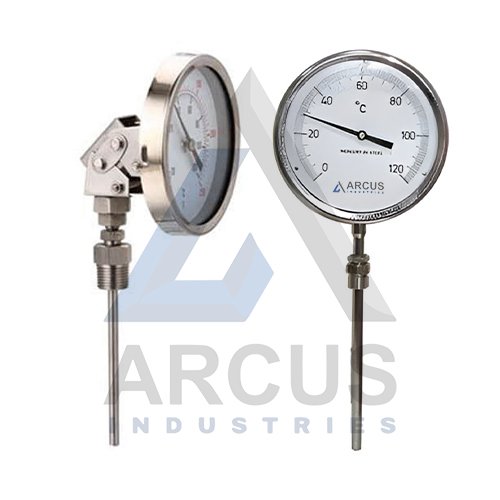

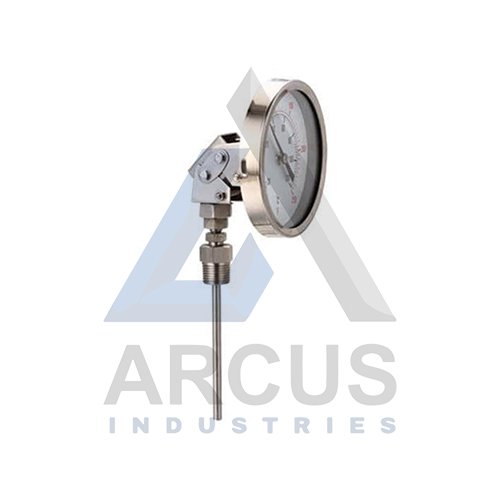

The ARCUS INDUSTRIES Temperature Gauge is a durable and accurate instrument designed to monitor temperature in industrial systems such as pipelines, tanks, boilers, and heat exchangers. Built for rugged environments, it provides clear and reliable readings in both gas and liquid applications across a wide temperature range.
Measuring Range | -50°C to +600°C (custom ranges available) |
Dial Size | 63 mm, 100 mm, 150 mm, 200 mm, 250 mm |
Accuracy Class | ±1.0% / ±1.6% of Full Scale |
Sensing Element | Bimetallic Coil / Gas Actuated |
Stem Material | SS304 / SS316 |
Stem Diameter | 6 mm / 8 mm / 10 mm (custom options) |
Stem Length | 50 mm to 300 mm or as required |
Mounting Type | Bottom, Back, or Every Angle Type |
Connection Type | 1/2″ BSP / NPT (Adjustable or Fixed) |
Enclosure Protection | IP65 |
