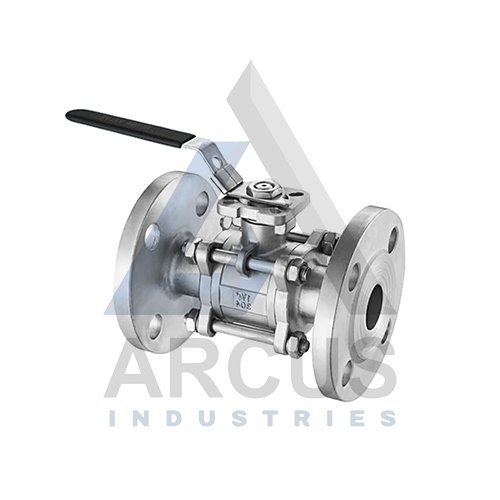

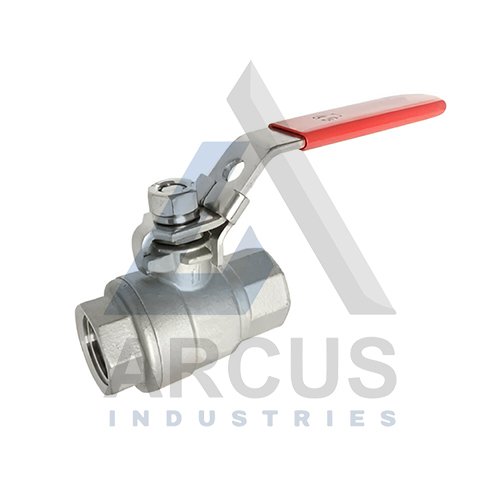

ARCUS Ball Valves are high-performance quarter-turn valves designed for efficient on/off control of fluids and gases. Featuring a robust construction and a precision-machined ball, these valves provide leak-tight sealing, low torque operation, and long service life. Suitable for a variety of industrial, chemical, and utility applications.
Body Material | Stainless Steel / Carbon Steel / Brass / Cast Iron / PVC |
Ball Material | SS304 / SS316 / Chrome-Plated Brass / PTFE-Coated |
Seat Material | PTFE / RPTFE / PEEK / Delrin |
Size Range | ¼” to 12” (DN6 to DN300) |
Pressure Rating | PN16 to PN100 / ANSI Class 150 to 800 |
End Connection | Screwed (BSP/NPT) / Flanged / Socket Weld / Butt Weld / Tri-Clamp |
Design Type | Two-piece / Three-piece / Full Bore / Reduced Bore |
Operation Method | Lever / Gear / Pneumatic / Electric Actuator |
Working Temperature | -29°C to 250°C (depending on material) |
A Globe Valve is a linear motion valve used to start, stop, and regulate flow in a pipeline. Named for its spherical body shape, it features a movable disk-type element and a stationary ring seat in a generally spherical body. The design provides precise throttling and flow control, making it ideal for applications requiring frequent operation and tight shutoff. Globe valves are commonly used in industries such as power generation, oil & gas, chemical processing, and water treatment.
Function | Protects pressure gauges by isolating during overpressure |
Material | SS304, SS316, Brass (depending on application) |
Set Pressure Range | Factory preset or adjustable from 0 to 600 bar |
Connection Size | ¼”, ½” BSP/NPT (Male x Female / Male x Male) |
Accuracy | ±1% of set pressure (typical) |
Max Pressure Rating | Up to 700 bar (model-specific) |
Temperature Range | -20°C to +200°C |
Thread Standard | BSP / NPT |
Installation | Direct mounting between pressure gauge and process line |

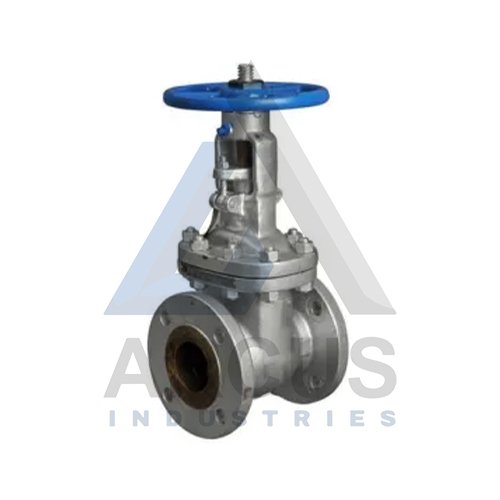

A Gate Valve is a linear motion valve primarily used to start or stop the flow of fluid. It features a flat or wedge-shaped gate (disc) that moves perpendicular to the flow direction to open or close the passage. Unlike globe valves, gate valves are not suitable for throttling purposes. They offer minimal pressure drop and allow full bore flow when open. Gate valves are widely used in water supply systems, oil & gas pipelines, chemical plants, and power plants due to their simple design and reliable shutoff performance.
Body Material | Cast Iron / Ductile Iron / C S / S S / Bronze |
Size Range | ½” to 24” (DN15 to DN600) |
Pressure Rating | ANSI Class 150 to 2500 / PN10 to PN100 |
End Connection | Flanged / Screwed / Butt Weld / Socket Weld |
Gate Type | Solid Wedge / Flexible Wedge / Split Wedge |
Bonnet Type | Bolted Bonnet / Pressure Seal |
Operation Method | Handwheel / Gear Operator / Electric / Pneumatic Actuator |
Temperature Range | -29°C to 600°C (Material-dependent) |

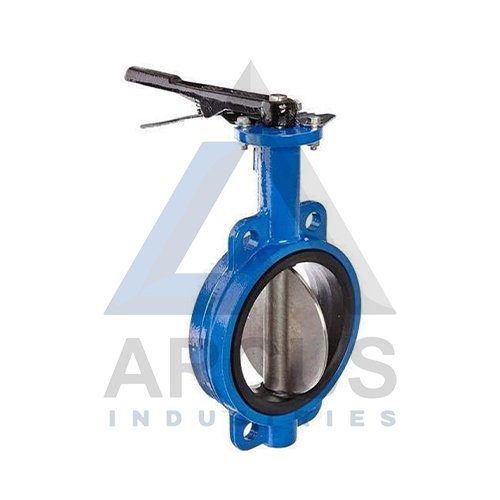

A Butterfly Valve is a quarter-turn rotary valve used to regulate, isolate, or start/stop the flow of fluid. It consists of a disc mounted on a rotating shaft that turns within the flow path to control flow. When the valve is fully open, the disc is rotated a quarter turn to allow fluid to pass through with minimal resistance. Butterfly valves are compact, lightweight, and cost-effective, making them ideal for large-diameter pipe systems in industries such as water treatment, HVAC, power generation, oil & gas, and food processing.
Body Material | Cast Iron / Ductile Iron / Carbon Steel / Stainless Steel |
Disc Material | SS / Aluminum Bronze / Nylon Coated / Ductile Iron |
Seat/Liner Material | EPDM / NBR / PTFE / Viton / Neoprene |
Size Range | 2” to 48” (DN50 to DN1200) |
Pressure Rating | PN6, PN10, PN16 / ANSI Class 150 |
End Connection | Wafer / Lug / Flanged / Double Flanged |
Operation Method | Lever Operated / Gear Operated / Pneumatic / Electric Actuator |
Working Temperature | -20°C to 200°C (depending on liner & body materials) |

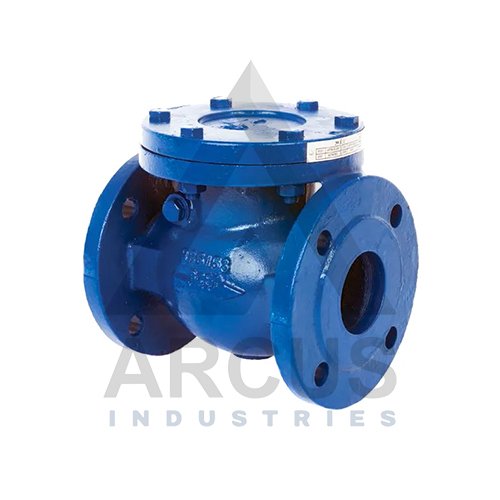

A Check Valve (non-return valve) is a one-way valve designed to allow fluid (liquid or gas) to flow in one direction only and prevent backflow. It operates automatically using differential pressure: the valve opens when the upstream pressure is greater than the downstream pressure, and it closes when the flow reverses. Check valves are essential in systems to protect pumps, compressors, and pipelines from potential damage due to reverse flow. They are widely used in water supply, oil & gas, chemical processing, and HVAC systems.
Body Material | Cast Iron / Ductile Iron / CS / SS/ Bronze |
Valve Type | Swing Type / Lift Type / Wafer Type / Dual Plate / Ball Type |
Size Range | ½” to 36” (DN15 to DN900) |
Pressure Rating | PN10 to PN100 / ANSI Class 150 to 1500 |
End Connection | Flanged / Wafer / Lug / Screwed / Socket Weld / Butt Weld |
Seat Material | Metal-to-Metal / EPDM / NBR / PTFE |
Operation Type | Automatic (non-actuated, based on pressure differential) |
Cracking Pressure | Typically, 0.5 to 1 psi (customizable based on application) |

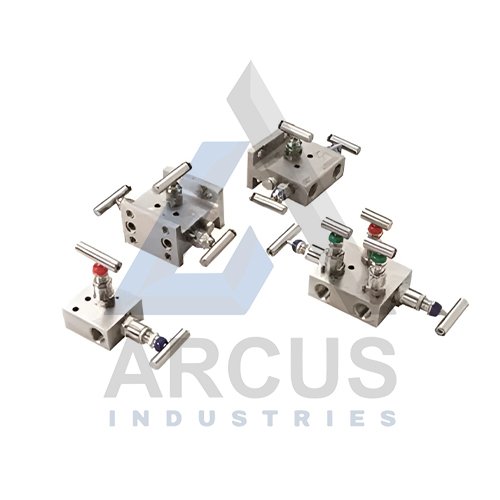

ARCUS Manifold Valves are precision-engineered for reliable performance in high-pressure systems. They are used to isolate, equalize, and vent pressure instruments such as transmitters and gauges. Available in 2-way, 3-way, and 5-way configurations, these valves support various installation and measurement needs.
Manufactured using robust materials, they ensure leak-proof operation and long service life. ARCUS manifold valves are ideal for critical process control in industries like oil & gas, chemical, and power generation.
Type | 2-Way (Isolation), 3-Way (Equalizing), 5-Way (Isolation + Equalizing + Vent) |
Material | SS 304 / SS 316 / SS316L (Others on request) |
Connection | Threaded (1/4″, 1/2″ NPT/BSP), Flanged, Direct Mount |
Pressure Rating | Up to 6000 psi (400 bar) |
Temperature Range | –50°C to +450°C (depends on material and packing) |
Sealing Type | PTFE / Graphite / Metal-to-metal (for high-temp use) |
Mounting | Pipe mount / Wall mount / Direct to transmitter |
Operation | Quarter-turn / Multi-turn needle type |
Leak Test | 100% factory tested for zero leakage |

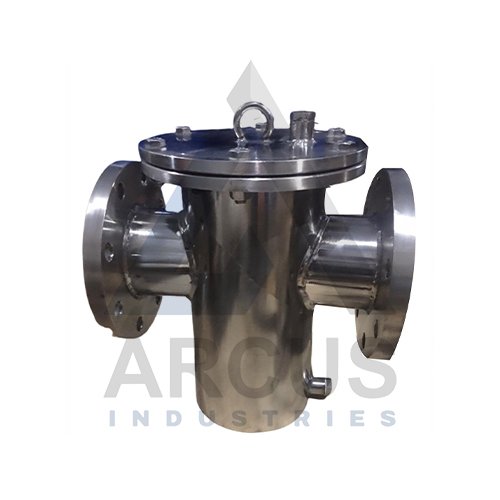

A Pipeline Strainer is a robust mechanical filter designed to remove large solid impurities from liquid pipelines. Its basket-shaped screen ensures efficient debris collection with minimal pressure drop, protecting downstream equipment such as pumps, valves, and flow meters. Ideal for high-flow systems, these strainers are widely used in water treatment, chemical processing, oil & gas, and other industrial applications.
Type | Basket Strainer (T-Type / In-line) |
Standard Sizes | 1” to 24” (DN25 to DN600) |
Filtration (Mesh) Size | 20 mesh to 500 mesh |
End Connections | Flanged (ANSI/DIN), Threaded (NPT/BSP) |
Operating Pressure Rating | 150#, 300#, or customized |
Body Material Options | Cast Iron / Carbon Steel / SS304 / SS316 |
Basket Material | SS304 / SS316 (Perforated or Mesh type) |
Design Temperature Range | -10°C to 200°C (Material dependent) |
Cover Type | Bolted / Hinged / Quick Open Clamp Type |
Drain Plug | Provided for easy maintenance |
